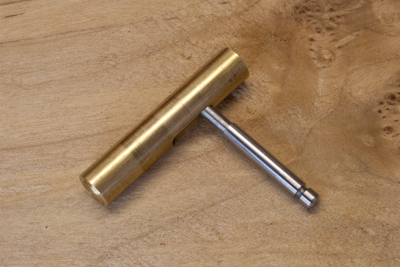

Slide bolts are used to lock one door to the case on a double door cabinet where one door will be locked into the other. The 1 3/8″ long cylindrical bolt is let into the top of the door. The diameter is 5/16″ with a 3/8″ travel. The stainless steel handle, which is attached to the bolt, is accessed from the inside of the door. The handle travels in a vertical mortise in the inside of the door. There is a spring-loaded ball bearing that holds the lock in the up position.

Slide bolts are also available with stainless steel and boxwood handle for $135
